SHADOWLINE™ 305 NON-CYCLONIC

About Shadowline™ 305

Fielders® Shadowline® 305 is a two pan, low-pitched roof deck that can be used down to a minimum of one degree pitch as a concealed fix button punched deck (see Figure SL IG NC 001) or as a pierced fix wall cladding. Fielders® Shadowline® 305 is available in all states of Australia except WA - see Shadowline® WA for details.

When used as a wall cladding Fielders® Shadowline® 305 can be fixed both horizontally and vertically through each pan to each girt with a hexagon head self-drilling and tapping screw. The exact specification is subject to project requirements.

Fielders® Shadowline® 305 can be rolled to any transportable length in ZINCALUME® with the full range of COLORBOND® colours in 0.70 BMT gauge.

Lead time for the Shadowline® 305 profile is subject to the material finish and the colour availability. Smaller quantities are available as a stock item, subject to normal rolling schedules. For substantial quantities the lead time generally does not exceed two to three weeks. Contact your local Fielders® office for further information.

SHADOWLINE™ 305 NON-CYCLONIC Profile

SHADOWLINE™ 305 NON-CYCLONIC Profile Cross Section

Material Specifications

PropertyNotes
Base Metal Thickness (mm)0.70BMT
Total Coated Thickness (mm)0.75*TCT
Mass / Unit LengthZINCALUME®2.96kg/m
COLORBOND®2.99*
Mass / Unit AreaZINCALUME®9.70kg/m2
COLORBOND®9.81*
Minimum Yield StrengthG300Base Steel Designation
Coating ClassAM100 - COLORBOND®
AM125 - ZINCALUME®
AM150 - COLORBOND® Ultra
Minimum Coating g/m2 of Zinc -
Aluminium
Coverage (mm)305
ToleranceSheet Length ±10mm Cover Width ±5mm
Thermal Expansion2.9mm average per 5m at 50°C change
Table SL MS NC 001 - Shadowline® 305 Non-Cyclonic
Notes:
  1. Shadowline® 305 is manufactured from materials in accordance to AS 1397 and AS 2728. It is to be installed in accordance with AS 1562 and HB 39.
  2. The sectional properties are theoretical values per sheet width. These properties are gross values only.
  3. *is based on Standard COLORBOND® single-sided material. For other painted steel options please contact a Fielders® representative.

Rainfall Capacity

For further information, please refer to sections “Rainfall Intensity” and “Water Carrying Capacity and Rainwater Run-Off”.

SHADOWLINE™ 305 NON-CYCLONIC Rainfall Capacity Figure SL RC NC 001

Figure SL RC NC 001

Maximum Roof Length (m)

Roof Slope
(degrees)
Rainfall Capacity (mm/hr)
100150200250300350400
121914611088736455
2273182136109918068
33202131601281079480
435923918014412010690
5398265199159133117100
Table SL RL NC 001 - Shadowline® 305 Non-Cyclonic
Note:
  1. Minimum recommended slope is 1°. Sheet lengths greater than 24m are not recommended due to thermal expansion and contraction.

Shadowline® 305 Button Punched

Button punching is a concealed-fix roofing and walling installation option.

Refer to installation guidelines for further information.

SHADOWLINE™ 305 Button Punched Figure SL BP 001

Figure SL BP 001

Wind Load Capacity: Limit State Design: 0.70mm BMT

Span (mm)Single SpanEnd SpanInternal Span
Serv. (kPa)Strength (kPa)Serv. (kPa)Strength (kPa)Serv. (kPa)Strength (kPa)
9002.603.601.454.202.055.20
12002.103.251.453.801.904.90
15001.702.851.403.451.804.55
18001.352.701.353.151.654.15
21001.102.401.302.751.553.65
24000.952.201.252.451.453.05
27000.801.951.152.251.302.50
Table HK WC NC 001 - Shadowline® 305 Non-Cyclonic
Note:
  1. Values are based on fixing into steel supports with a minimum thickness of 1.5mm.
  2. Values in italics are estimates based on trend lines fitted to the test data.
  3. Values are based on no insulation under the sheeting.
  4. Serv. denotes serviceability



Figure SL NC 001 End Spans, Internal Spans and Overhangs illustrates the terminology end spans, internal spans, and overhangs and their reference to the supporting substructure. This terminology has been used in the following Maximum Recommended Span and Wind Load Capacity tables.

SHADOWLINE™ 305 NON-CYCLONIC Figure SL NC 001 End Spans, Internal Spans and Overhangs

Figure SL NC 001 End Spans, Internal Spans and Overhangs

Maximum Recommended Roof Cladding Span

Wind
Region
Base Metal
Thickness
(mm)
Terrain Category 2Terrain Category 3
Single (mm)End (mm)Internal (mm)Single (mm)End (mm)Internal (mm)
A0.701500-2500180020002500
B0.70--2500180020002500
Wind Loading Design Parameters
+
Design Life 50 years
Importance Level 2
Maximum Roof Height H = 10m
External Pressure Coefficients:
   Cp,e = -0.65 (walling)
   Cp,e = -0.9 (roofing)
Internal Pressure Coefficient:
   Cp,i = 0.2
Local Pressure Factors:
   Kl = 2.0 (end & single spans)
   Kl = 1.0 (internal spans)

Table SL RS NC 002 - Shadowline® 305 Non-Cyclonic
Notes:
  1. Maximum roofing spans comply with both strength and serviceability wind pressure requirements.
  2. Spans shown in italics are limited by foot traffic requirements.

Maximum Recommended Wall Cladding Span

Wind
Region
Base Metal
Thickness
(mm)
Terrain Category 2Terrain Category 3
Single (mm)End (mm)Internal (mm)Single (mm)End (mm)Internal (mm)
A0.70190022002700250027002700
B0.70150014002700230027002700
Wind Loading Design Parameters
+
Design Life 50 years
Importance Level 2
Maximum Roof Height H = 10m
External Pressure Coefficients:
   Cp,e = -0.65 (walling)
   Cp,e = -0.9 (roofing)
Internal Pressure Coefficient:
   Cp,i = 0.2
Local Pressure Factors:
   Kl = 2.0 (end & single spans)
   Kl = 1.0 (internal spans)

Table SL RS NC 001 - Shadowline® 305 Non-Cyclonic
Notes:
  1. Maximum walling spans comply with both strength and serviceability wind pressure requirements.

Maximum Recommended Roof Cladding Spans Based on Foot Traffic

Base Metal
Thickness (mm)
Single (mm)End (mm)Internal (mm)
0.70180020002500
Table SL FT NC 001 - Shadowline® 305 Non-Cyclonic

Shadowline® 305 Pierced Fixed

A pierced fixed wall cladding installation option is also available.

Refer to installation guidelines for further information.

SHADOWLINE™ 305 NON-CYCLONIC Pierced Fixed Figure SL PF 001

Figure SL PF 001

Wind Load Capacity: Limit State Design: Pierced Fixed : 0.70mm BMT

Span (mm)End SpanInternal Span
Serv. (kPa)Strength (kPa)Serv. (kPa)Strength (kPa)
9004.0912.09--
12003.639.344.2412.09
15003.487.163.509.34
18003.215.093.277.16
21002.743.673.095.09
24002.463.632.743.67
27001.983.09--
30001.782.88--
33001.492.38--
Table SL WC NC 002 - Shadowline® 305 Non-Cyclonic
Note:
  1. Serv. denotes serviceability



Figure SL NC 001 End Spans, Internal Spans and Overhangs illustrates the terminology end spans, internal spans, and overhangs and their reference to the supporting substructure. This terminology has been used in the following Maximum Recommended Span and Wind Load Capacity tables.

SHADOWLINE™ 305 NON-CYCLONIC Figure SL NC 001 End Spans, Internal Spans and Overhangs

Figure SL NC 001 End Spans, Internal Spans and Overhangs

Maximum Recommended Wall Cladding Span (mm) Pierced Fixed

Wind
Region
Base Metal
Thickness
(mm)
Terrain Category 2Terrain Category 3
End (mm)Internal (mm)End (mm)Internal (mm)
A0.703000*3000*3000*3000*
B0.703000*3000*3000*3000*
Wind Loading Design Parameters
+
Design Life 50 years
Importance Level 2
Maximum Roof Height H = 10m
External Pressure Coefficients:
   Cp,e = -0.65 (walling)
   Cp,e = -0.9 (roofing)
Internal Pressure Coefficient:
   Cp,i = 0.2
Local Pressure Factors:
   Kl = 2.0 (end & single spans)
   Kl = 1.0 (internal spans)

Table SL RS NC 003 - Shadowline® 305 Non-Cyclonic
Notes:
  1. Maximum walling spans comply with both strength and serviceability wind pressure requirements.
  2. * Spans in excess of 3000mm may be available subject to enquiry. Wall applications or long spans require particular attention to installation practice.

Installation Guidelines: Button Punched (Concealed Fixed)

Step 1

Place first sheet down with the correct length into the gutter. Using the rib closing tool squash the female rib and place a top fixing clip over and fix to the purlin.

SHADOWLINE™ 305 NON-CYCLONIC Installation Guidelines: Button Punched (Concealed Fixed) Step 1 Figure SL IG NC 001

Figure SL IG NC 001

Step 2

Using the rib closing tool squeeze the male rib of the first sheet. Place top fixing clip over each squashed male rib and fix to purlin. This needs to be done to prevent the sheet from lifting in the wind before the barges are fitted. The use of string lines will assist in ensuring sheets are installed straight.

SHADOWLINE™ 305 NON-CYCLONIC Installation Guidelines: Button Punched (Concealed Fixed) Step 2 Figure SL IG NC 002

Figure SL IG NC 002

Step 3

Make a small non-permanent mark in the pan to enable you to locate the clips in the latter locking operation with the button punch.

Step 4

Position the female rib of the next sheet over the male rib and clips ensuring that it is fully engaged. Fully engage the sheet with the clips using foot pressure on the ribs over each clip. You can do this by walking along the full length of the sheet with one foot in the tray next to the overlapping rib and the other foot applying pressure to the top of the interlocking ribs at regular intervals.

SHADOWLINE™ 305 NON-CYCLONIC Installation Guidelines: Button Punched (Concealed Fixed) Step 4 Figure SL IG NC 003

Figure SL IG NC 003

Step 5

Repeat steps 3 to 5.

Step 6

All lapped ribs must be locked along their length, by button punching at the clips, and if necessary between the clips (typically at 900mm centre to centre). Punching to a string line guide stretched across the sheeting is recommended as random punching marks the appearance of the finished work.

Step 7

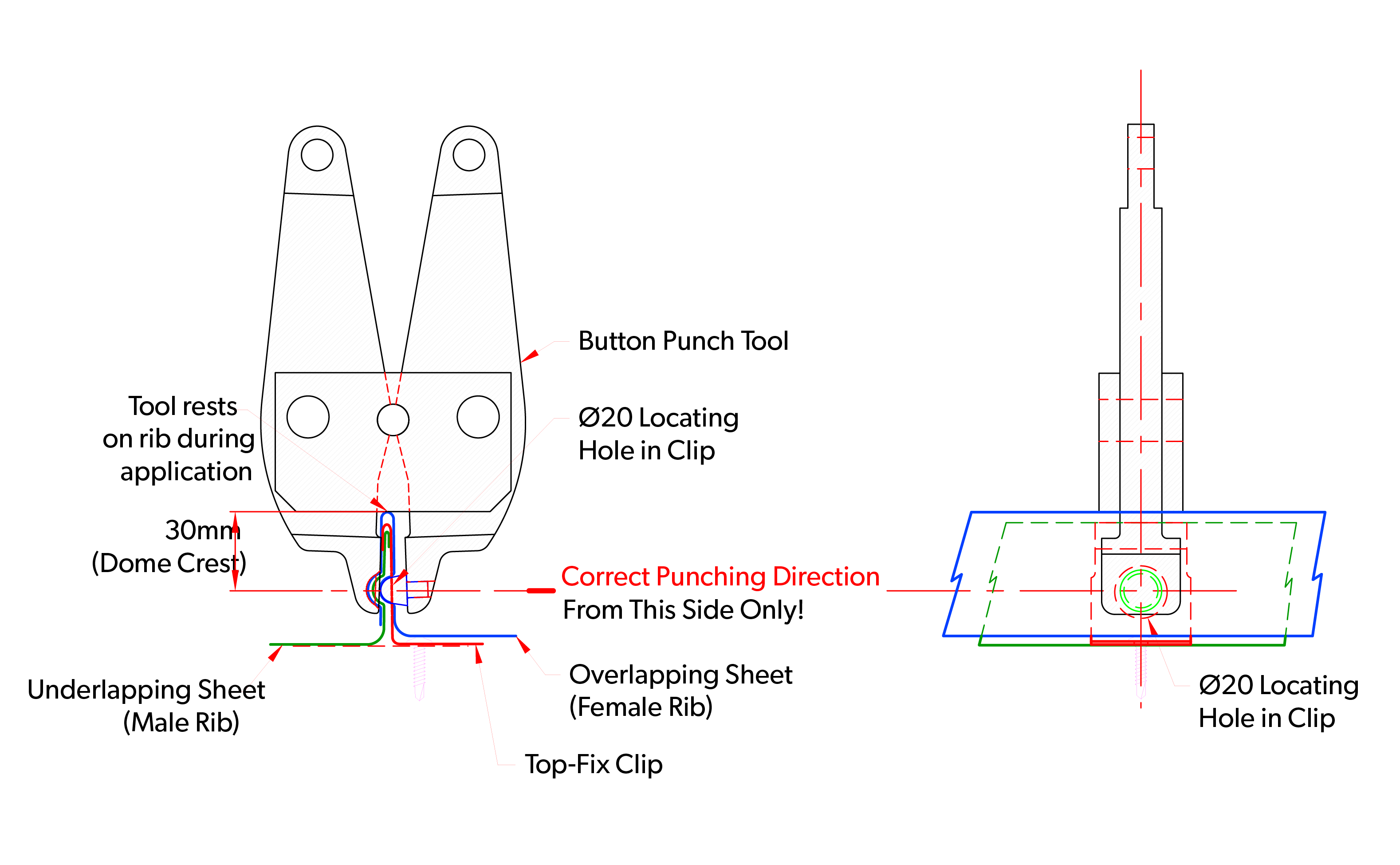

You must button punch through the hole in each top fixing clip, you can locate the clip with the non-permanent mark made previously. When operating the punching tool, stand on the pan of the overlapping sheet to ensure that the sheets are fully engaged.

SHADOWLINE™ 305 NON-CYCLONIC Installation Guidelines: Button Punched (Concealed Fixed) Step 7 Figure SL IG NC 004

Figure SL IG NC 004

Ends of Sheets

Wind can drive water uphill under the flashings or cappings. Also, at the low end of a roof, wind or capillary action can cause water to run back up the underside of the sheeting. To minimise these problems, turn the pans up at the top of sheets, and turn them down at the bottom. A tool is available for these jobs (ref. Figure SL IG NC 005).

SHADOWLINE™ 305 NON-CYCLONIC Ends of Sheets Figure SL IG NC 005

Figure SL IG NC 005

Turning-up

Flush turn-ups are usually used on Shadowline® 305. Cut off a portion of the female rib for at least 50mm. For a flush turn-up, you also need to cut the crown of the centre rib for at least 50mm.

Holding the end of the tool against the end of the sheet, pull the handle up 90°. If turning-up flush, fold the protruding ears flush against the turn-up tool with a rubber mallet (ref. Figure SL IG NC 005).

Turning-down

All roofing on slopes below 1 in 5 (10°) must be turned down. Turning-down is usually done after the sheeting is fixed on the roof, provided there is no obstruction to the operation of the turn-down tool.

Push the turn-down tool over the end of the tray, as far as it will go.

Hold the tool hard against the end of the tray and push the handle to form a turn-down of about 20° (Figure SL IG NC 006).

SHADOWLINE™ 305 NON-CYCLONIC Turning-down Figure SL IG NC 006

Figure SL IG NC 006

Recommended Fasteners

Recommended Fasteners Button Punched

SupportsRecommended Fastener (Without Insulation)
Steel 1.0 to 3.5mm10g-16x16mm Wafer Head Tek Screw
Timber Hardwood10g-12x25mm Wafer Head Type 17 Screw
Timber Softwood10g-12x25mm Wafer Head Type 17 Screw
Steel Battens (0.55 to 1.0mm)10g-16x16mm Wafer Head Tek Screw
Table SL RF NC 001 - Shadowline® 305 Non-Cyclonic

Recommended Fasteners Pierced Fixed

SupportsRecommended Fastener (Without Insulation)
Steel 1.0 to 3.5mm14g-10x25mm Hex Head Tek Screw
Timber Hardwood14g-10x25mm Hex Head Type 17 Screw
Timber Softwood14g-10x25mm Hex Head Type 17 Screw
Steel Battens (0.55 to 1.0mm)14g-10x25mm Hex Head Tek Screw
Table SL RF NC 002 - Shadowline® 305 Non-Cyclonic

SHADOWLINE™ 305 NON-CYCLONIC Recommended Fasteners Pierced Fixed Figure SL IG NC 007

Figure SL IG NC 007

Roof to Wall Connection Detail 1

Step 1 - Rib Caps Cut and Folded from Flat Sheet

Development of Cap on Flat Sheet

SHADOWLINE™ 305 NON-CYCLONIC Roof to Wall Connection Detail 1 Step 1 - Rib Caps Cut and Folded from Flat Sheet Figure SL IG NC 008

Figure SL IG NC 008

 Step 2

SHADOWLINE™ 305 NON-CYCLONIC Roof to Wall Connection Detail 1 Step 2  Figure SL IG NC 009

Figure SL IG NC 009

Step 3

SHADOWLINE™ 305 NON-CYCLONIC Roof to Wall Connection Detail 1 Step 3  Figure SL IG NC 010

Figure SL IG NC 010

Roof to Wall Connection Detail 2

Step 1

SHADOWLINE™ 305 NON-CYCLONIC Roof to Wall Connection Detail 2  Step 1 Figure SL IG NC 011

Figure SL IG NC 011

Step 2

SHADOWLINE™ 305 NON-CYCLONIC Roof to Wall Connection Detail 2  Step 2 Figure SL IG NC 012

Figure SL IG NC 012

Step 3

SHADOWLINE™ 305 NON-CYCLONIC Roof to Wall Connection Detail 2  Step 3 Figure Figure SL IG NC 013

Figure SL IG NC 013

Maximum Sheet Length

Designing Without Step Joints

Refer to section "Long Length Roofing Solutions".

Insulation

Care needs to be taken when installing insulation with Shadowline® roof sheeting. When insulation thicknesses up to 50mm are installed the screws may need to be increased depending on the thickness and density of the insulation. When the screw is properly tightened into metal there should be a minimum of three (3) threads protruding past the support being fixed in to. For timber, the screw must have a minimum embedment of 25mm into timber.

When insulation is required in conjunction with Finesse® profiles, Fielders® recommend the use of a thermal spacer to help maintain Rw values as well as minimising any bulging in the profile caused by the insulation.

Insulation blankets and batts can cause wide flat pan cladding to bow out between the supports, between fasteners along the support, or bow the pans. For insulation blankets and batts as well as more dense glass wool and rock wool, and thicker insulation, spacers are recommended.

SHADOWLINE™ 305 NON-CYCLONIC Maximum Recommended Wall Cladding Span SL INS NC 001

SL INS NC 001

Turning of Roof Sheeting Ends

Refer to section “Flashings, Cappings & Ends of Sheets”.
